Description

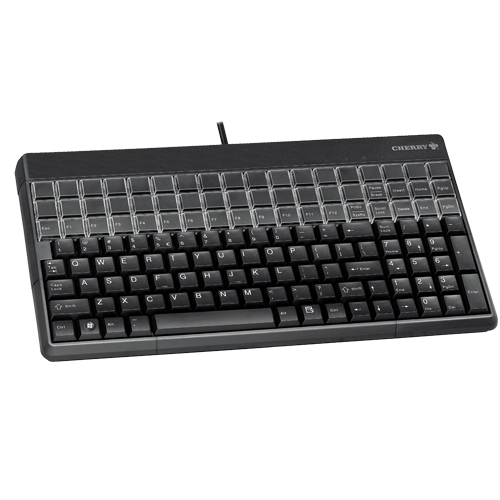

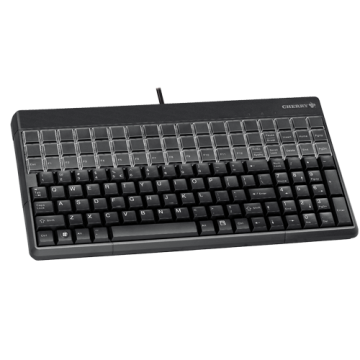

CHERRY SPOS G86-61400
Black 14" USB keyboard. US 135 position key layout with 32 additional keys. 135 programmable and 54 relegendable keys. Includes 'Cherry Tools' configuration software and UPOS drivers.
Features:
- Full Alphanumeric Layout incl. Numeric Keypad
- Compact only 360 mm width
- User-friendly unstinted standard 19 mm key spacing
- IP54 rated spill and dust resistant key section
- Flexible layout customization with exchangeable re-legendable keys
- Fully programmable USB 2.0 keyboard
- Factory option: 3-Track Magnetic Stripe Reader
- Factory option: Touchpad with 2 mouse buttons
- Comprehensive UPOS support
- Integrated memory
- Cut-out mounting capabilities (circumferential rim)
- Pluggable feet
Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R
Warranty
3 Year limited factory warranty
