Description

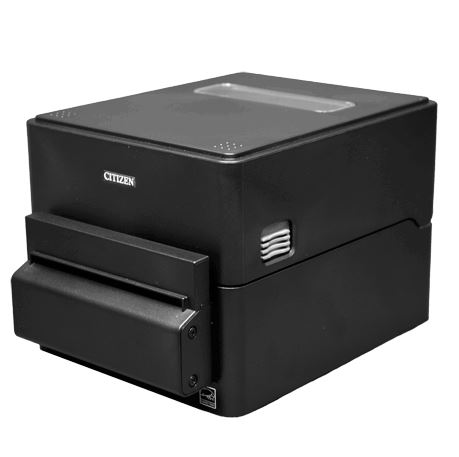

CITIZEN CLE-300 with cutter 203 dpi Blk Direct Thermal Printer
CLE-300 4" Direct thermal Label Printer 203 dpi, 200 mm/sec, Fixed Cutter, USB, Ethernet & RS232 Interface, Black, USB Cable included
Features :
- Direct Thermal Label Printer
- Paper load: Front access for all operations including media and ribbon changing
- Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)
- Paper thickness: Paper thickness up to 0.150mm
- Case colour: Available in black or white
- Media sensor: Adjustable media sensor, Black mark sensor, Label gap sensor
Specifications :
Printing Method : Direct Thermal
Printing Width : Max. 104 mm
Printing Length : 6.4 to 2540 mm depending on emulation
Dot Pitch : CLE-300: 8 x 8 dots / mm (203 dpi)
Printing Speed (Max.) : CL-E300 Max. 200 mm/s - 8 ips
Font : Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer
Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4
*3: The OCR font may have a low recognition rate according to the reader.
*4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation.
Character Table/Code Pages : See User Manual (page 55 under Symbol set)
Bar-code Type : Datamax® emulation:
Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS
Zebra® emulation: Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39
Paper feed method : Friction Feed
Media Type : Roll, fanfold
(Continuous media, die-cuts media, continuous tags, copntinuous tickets)
Media width : Min. 24 mm to Max. 118 mm
Paper Roll Diameter : Max Ø 125 mm with 25.4 to 38 mm Core
Media Tickness : Min. 0.0635 mm to Max. 0.190 mm
Auto Cutter : CL-E300CG Fixed guilotine cutter
Indicators/Controls : Power & Status (3 Colour) LED
Feed & Setting Button
Feed Button can be Programmed to repeat
Power Switch
Emulation : CITIZEN original language
Datamax® Programming language
Zebra® programming language
Auto detect
CPU : 32-bit RISC processor at 216 Mhz
Memory : 16 Mb of Flash ROM, 4Mb available to user
32 Mb of SDRAM, 4Mb available to user
Sensors : Cover Open sensor
Upper & Lower media sensors: Label gap (see through), Notch (see through) Registration mark (rear printed black mark) Continuous media (no sensing, except media out)
Peeler and Cutter sensors when installed
Interfaces : USB 2.0 Full Speed (12 Mbps)
Serial: RS232C compliant, 9-pin D-type, 1200 115200 baud
LAN: 100Base-TX, 10Base-TX, 2 indicators, test Button
Driver available : Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others
Software Utilities : All the traditional Citizen Menus
Includes ‘specials’ and extra commands
VuePrint™ configuration commands
Citizen Configuration Utility
LinkServer™ Web Configuration & Monitoring
Power Supply : External Adapter AC Input 110-240V 50/60Hz
DC Output 24V 2.5A
ENERGY STAR® qualified printer
Power Consumption : Power consumption: CEC LEVEL 6 compatible
Standby power 1.5 to 1.7 W (depends on 110/240v and model)
Printing power 63 to 70 W (depends on 110/240v and model)
External Dimensions (WxDxH) : 170W × 208D × 152H mm
Weight : 1.98 Kg approx.
Operating Environment : Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment : Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards :CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick/RCM, CCC,UL, C-UL
